Implementing KernelGP to Extend the Race Window
The talk KernelGP: Racing Against the Android Kernel at OffensiveCon 2025 demonstrates four techniques to leverage Android’s internal design to extend the race window during kernel exploitation. In this post, I will walk through my exploration of the first method — the proxy file descriptor — and explain how I implemented it. I’ll also share some side notes on writing an Android app.
1. JNI
1.1. Introduction
JNI (Java Native Interface) is an interface between Java/Kotlin applications and C/C++ libraries. It allows developers to write C libraries and load them into applications. This is very useful in exploitation development, because applications are written in high-level languages, where we lack fine-grained control over operations.
To write a library, you first need to download the NDK. It includes toolchains for building libraries, most of which are pre-built, so no additional compilation is required. I used android-ndk-r27d-linux.zip in my virtual machine.
Once uncompressed, you can use JNI APIs to write a library. For example, here is a hello.c that implements a simple JNI function returning a "Hello World" string:
#include <jni.h>
JNIEXPORT jstring JNICALL
Java_com_example_myapplication_MainActivity_stringFromJNI(JNIEnv* env, jobject thiz) {
return (*env)->NewStringUTF(env, "Hello from C!");
}
The function name cannot be arbitrary — it must follow JNI naming conventions. The format is: Java_<application_name>_<class_name>_<method_name> with dots (.) in names replaced by underscores (_), and underscores (_) further escaped as _1.
The first two parameters are predefined: the JNI environment object (env) and the caller object (thiz). The return type must be a Java-compatible type, such as void, jboolean, jint, jstring, etc.
To compile it, use the toolchain compiler with flags for building a shared object:
~/android-ndk-r27d/toolchains/llvm/prebuilt/linux-x86_64/bin/aarch64-linux-android34-clang -shared -fPIC -o libhello.so hello.c
Then, copy libhello.so to ~/path_to_your_application/app/src/main/jniLibs/arm64-v8a/.
In the com.example.myapplication project, you need to add the attribute android:extractNativeLibs="true" in AndroidManifest.xml to ensure the application extracts native shared objects:
<application
[...]
android:extractNativeLibs="true"
>
The MainActivity class then uses System.loadLibrary() to load the shared library. The file name must follow the format "libXXXXX.so", otherwise it will not be extracted and cannot be loaded. You also need to declare an external function for later use:
init { System.loadLibrary("hello") }
external fun helloworld(): String
Now, you can call helloworld() anywhere in your application!
1.2. Real JNI
The actual library libfuse_mmap.so used to trigger FUSE is shown below:
#include <jni.h>
#include <errno.h>
#include <string.h>
#include <unistd.h>
#include <stdio.h>
#include <sys/mman.h>
char buf[0x100];
JNIEXPORT jstring JNICALL
Java_com_example_fuse_1test_MainActivity_mmapfuse(JNIEnv* env, jobject thiz, jint fd /* [1] */) {
void* ptr = mmap(NULL, 0x1000, PROT_READ, MAP_SHARED, fd, 0); // [2]
if (ptr == MAP_FAILED) {
char buf[128];
snprintf(buf, sizeof(buf), "mmap failed: errno=%d (%s)", errno, strerror(errno));
return (*env)->NewStringUTF(env, buf);
}
memset(buf, 'A', sizeof(buf));
memcpy(buf, ptr, 0x10); // [3]
return (*env)->NewStringUTF(env, buf);
}
This function is called mmapfuse() and belongs to the MainActivity class in the com.example.fuse_test project. It takes the FUSE file descriptor as a parameter [1] and maps it into the process address space with mmap() [2]. When memcpy() reads from the mapped memory [3], page fault will be handled by the FUSE handler.
2. App
The following is the source code of the application com.example.fuse_test. I will explain it line by line.
class MainActivity : ComponentActivity() {
// =============== [1] ===============
init { System.loadLibrary("fuse_mmap") }
external fun mmapfuse(fuseFd: Int): String
// ===================================
override fun onCreate(savedInstanceState: Bundle?) { // [2]
super.onCreate(savedInstanceState)
setContent {
// =============== [3] ===============
var output by remember { mutableStateOf("running...") }
var fusePfd by remember { mutableStateOf<ParcelFileDescriptor?>(null) }
var callbackThread by remember { mutableStateOf<HandlerThread?>(null) }
var callbackHandler by remember { mutableStateOf<Handler?>(null) }
// ===================================
LaunchedEffect(Unit) { // [4]
callbackThread = HandlerThread("ProxyFDCallbacks").apply { start() } // [6]
callbackHandler = Handler(callbackThread!!.looper)
val data = "from FUSE callback :)".toByteArray(Charsets.UTF_8)
val sm = getSystemService(STORAGE_SERVICE) as StorageManager // [7]
fusePfd = sm.openProxyFileDescriptor( // [8]
ParcelFileDescriptor.MODE_READ_ONLY,
FuseCallback(data),
callbackHandler
)
output = mmapfuse(fusePfd!!.fd) // [11]
}
Scaffold(modifier = Modifier.fillMaxSize()) { innerPadding ->
Text(output, modifier = Modifier.padding(innerPadding)) // [12]
}
DisposableEffect(Unit) { // [5]
onDispose {
try { fusePfd!!.close() } catch (_: Exception) {}
callbackThread!!.quitSafely()
}
}
}
}
}
class FuseCallback(private val data: ByteArray) : ProxyFileDescriptorCallback() { // [9]
override fun onGetSize(): Long = data.size.toLong()
override fun onRead(offset: Long, size: Int, dst: ByteArray): Int {
if (offset < 0 || size < 0) throw ErrnoException("onRead", OsConstants.EINVAL)
if (offset >= data.size) return 0
val n = minOf(size, data.size - offset.toInt())
System.arraycopy(data, offset.toInt(), dst, 0, n)
Thread.sleep(2000) // [10]
return n
}
override fun onWrite(offset: Long, size: Int, data: ByteArray): Int {
throw ErrnoException("onWrite", OsConstants.EBADF)
}
override fun onFsync() {}
override fun onRelease() {}
}
First, we load the shared library libfuse_mmap.so and function mmapfuse() [1] which was implemented in section 1.2.
Once the application is loaded, the onCreate() method is invoked [2], so it can be considered the entry point of the application. Next, we define several mutable variables to maintain state within a Composable by keywork remember [3].
After that, we use LaunchedEffect(Unit) [4] and DisposableEffect(Unit) [5] to define the prologue and epilogue handlers when entering and leaving the Composition.
The prologue handler creates a thread "ProxyFDCallbacks" as a proxy fd handler [6], since the proxy fd must be managed on a separate thread. Then, the getSystemService() function [7] is called to obtain the StorageManager system service. Using this handle, we can communicate with the storage manager service and request it to create a proxy fd for us by calling the openProxyFileDescriptor() function [8].
This function takes three parameters: opened file mode, callback object and handling thread. Since the file mode is set to ParcelFileDescriptor.MODE_READ_ONLY, we can only read the file but cannot write to it. The FuseCallback() [9] class extends the callback handler to provide custom behavior.
In the onRead() handler, we insert a sleep call [10] before returning the read size. As a result, when mmapfuse() [11] is invoked, the memory copy operation — specifically memcpy(buf, ptr, 0x10) — on the mapped FUSE fd will block the read access for two seconds.

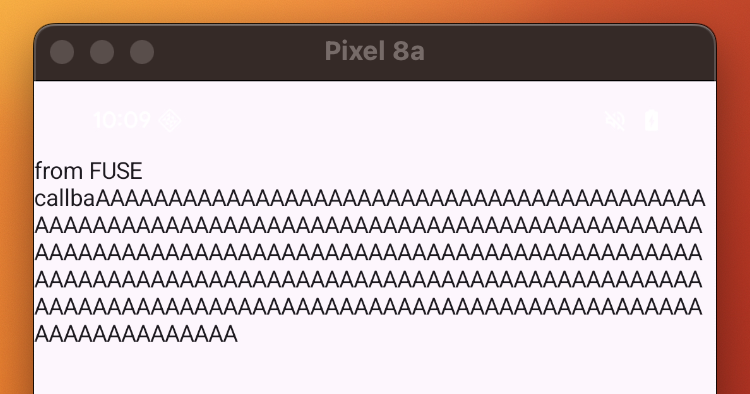

Later, the output of the function call is displayed on the screen by invoking Text() [12], which is expected to look like:
Finally, the epilogue closes the FUSE fd and releases the "ProxyFDCallbacks" thread.
3. Internal
According to the API documentation, we can call getSystemService() to obtain a handle to a system-level service by name. This allows us to retrieve a StorageManager instance and access its predefined handlers.
public abstract Object getSystemService (String name)
The StorageManager class provides the method openProxyFileDescriptor(), which is implemented in android.os.storage.StorageManager.
@SystemService(Context.STORAGE_SERVICE)
public class StorageManager {
// [...]
public @NonNull ParcelFileDescriptor openProxyFileDescriptor(
int mode, ProxyFileDescriptorCallback callback, Handler handler)
throws IOException {
Preconditions.checkNotNull(handler);
return openProxyFileDescriptor(mode, callback, handler, null);
}
// [...]
}
Internally, the method mountProxyFileDescriptorBridge() [1] is invoked to obtain an AppFuseMount object and enter the FUSE app loop to handle file operations.
public @NonNull ParcelFileDescriptor openProxyFileDescriptor(
int mode, ProxyFileDescriptorCallback callback, Handler handler, ThreadFactory factory)
throws IOException {
// [...]
while (true) {
try {
synchronized (mFuseAppLoopLock) {
boolean newlyCreated = false;
if (mFuseAppLoop == null) {
final AppFuseMount mount = mStorageManager.mountProxyFileDescriptorBridge(); // [1]
}
// [...]
mFuseAppLoop = new FuseAppLoop(mount.mountPointId, mount.fd, factory);
// [...]
}
// [...]
}
}
// [...]
}
This call corresponds to a Binder transaction in IStorageManager, as defined in IStorageManager.aidl. The IStorageManager service runs inside system_server, which hosts almost all of the core system services.
interface IStorageManager {
// [...]
AppFuseMount mountProxyFileDescriptorBridge() = 73;
// [...]
}
We can verify this information using the service and ps shell commands.
akita:/ # service list | grep mount
242 mount: [android.os.storage.IStorageManager]
akita:/ # ps -A | grep -i system_server
system 1436 903 23594364 775776 do_epoll_wait 0 S system_server
The method mountProxyFileDescriptorBridge() is implemented in StorageManagerService.java, where it creates an AppFuseMountScope object [2].
class StorageManagerService extends IStorageManager.Stub
implements Watchdog.Monitor, ScreenObserver {
// [...]
@Override
public @Nullable AppFuseMount mountProxyFileDescriptorBridge() {
// [...]
while (true) {
// [...]
try {
return new AppFuseMount(
name, mAppFuseBridge.addBridge(new AppFuseMountScope(uid, name))); // [2]
} catch (FuseUnavailableMountException e) {
// [...]
}
}
}
// [...]
}
The AppFuseMountScope class is also defined in StorageManagerService.java. Its open() method eventually calls mVold.mountAppFuse() [3] to obtain the FUSE fd.
class AppFuseMountScope extends AppFuseBridge.MountScope {
private boolean mMounted = false;
public AppFuseMountScope(int uid, int mountId) {
super(uid, mountId);
}
@Override
public ParcelFileDescriptor open() throws AppFuseMountException {
extendWatchdogTimeout("#open might be slow");
try {
final FileDescriptor fd = mVold.mountAppFuse(uid, mountId); // [3]
mMounted = true;
return new ParcelFileDescriptor(fd);
} catch (Exception e) {
throw new AppFuseMountException("Failed to mount", e);
}
}
// [...]
}
The method mountAppFuse() is a Binder call exposed by the Vold (Volume Daemon) process, defined in IVold.aidl.
@SensitiveData
interface IVold {
FileDescriptor mountAppFuse(int uid, int mountId);
}
Vold runs as a dedicated process, which is responsible for handling the FUSE open and mount operations internally:
akita:/ # service list | grep -i vold
# [...]
368 vold: [android.os.IVold]
akita:/ # ps -A | grep -i vold
root 559 1 11025252 9996 binder_thread_read 0 S vold
Finally, within the C++ function MountAppFuse(), the mount path is defined [4], the "/dev/fuse" file is opened [5], and the mount operation [6] is performed.
int MountAppFuse(uid_t uid, int mountId, android::base::unique_fd* device_fd) {
std::string name = std::to_string(mountId);
// [...]
std::string path;
// [...]
if (GetMountPath(uid, name, &path) != android::OK) { // [4]
LOG(ERROR) << "Invalid mount point name";
return -1;
}
// [...]
device_fd->reset(open("/dev/fuse", O_RDWR)); // [5]
// [...]
return RunCommand("mount", uid, path, device_fd->get()); // [6]
}
